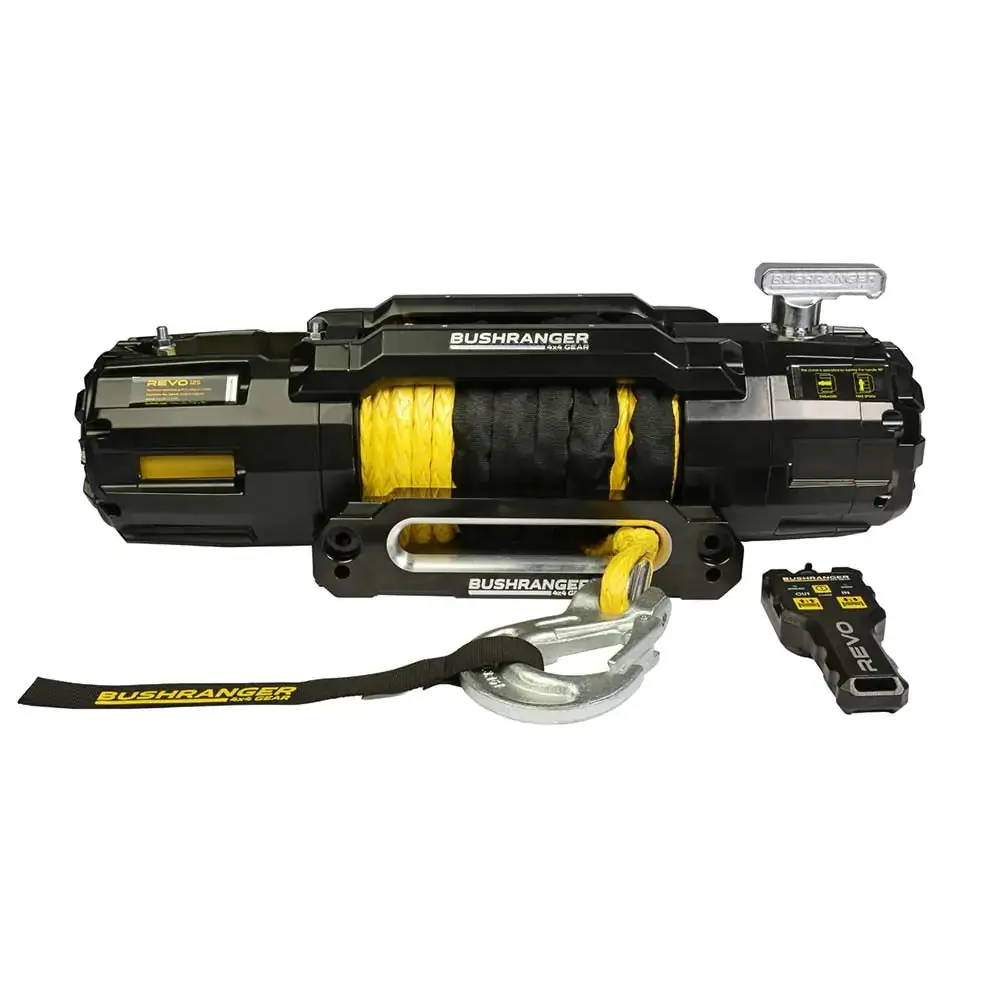

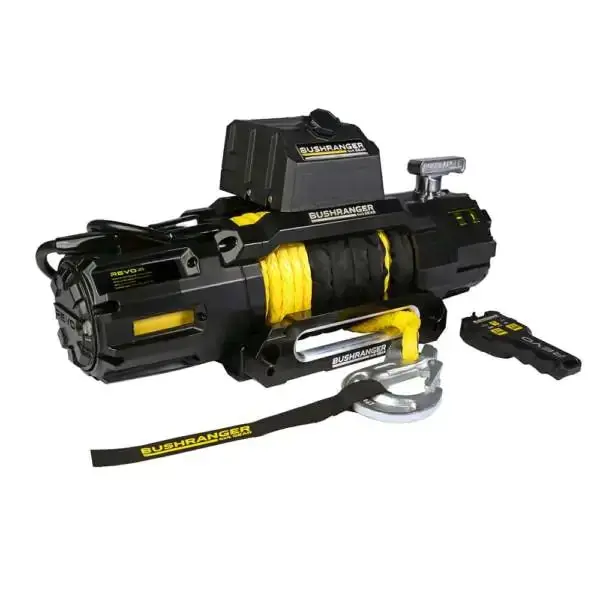

Bushranger – Revo Winch 12,000lb Synthetic

REVO winches are designed to be strong, versatile, and ready for anything. Consistently developing and improving our products, Bushranger REVO is built with long term reliability in mind. With a new and improved powder coating; rigorously tested in Australian facilities and real-world conditions. REVO is ready to be pushed to the extreme.
Designed to tackle any challenge, the REVO 12S is packed with tough and reliable features.

10mm premium synthetic rope paired with a ½” removable clevis hook.

4 Stage oversized, externally adjustable gearbox designed for maximum strength and versatility. With 16 clockable positions making for ease of fitment.

Gearbox mounted braking system 100% load holding, proportional friction braking system located inside the gearbox, away from the drum – eliminating heat transfer to rope.

In-line hawse fairlead made from lightweight aircraft-grade aluminium. Engineered with an innovative two position design allowing for greater flexibility when installing.

Series wound, 12V, 6.2HP motor made with high grade materials. Resulting in low current draw and longer life at extreme loads.

Spring loaded clutch making for an easy to use no-lift style clutch mechanism

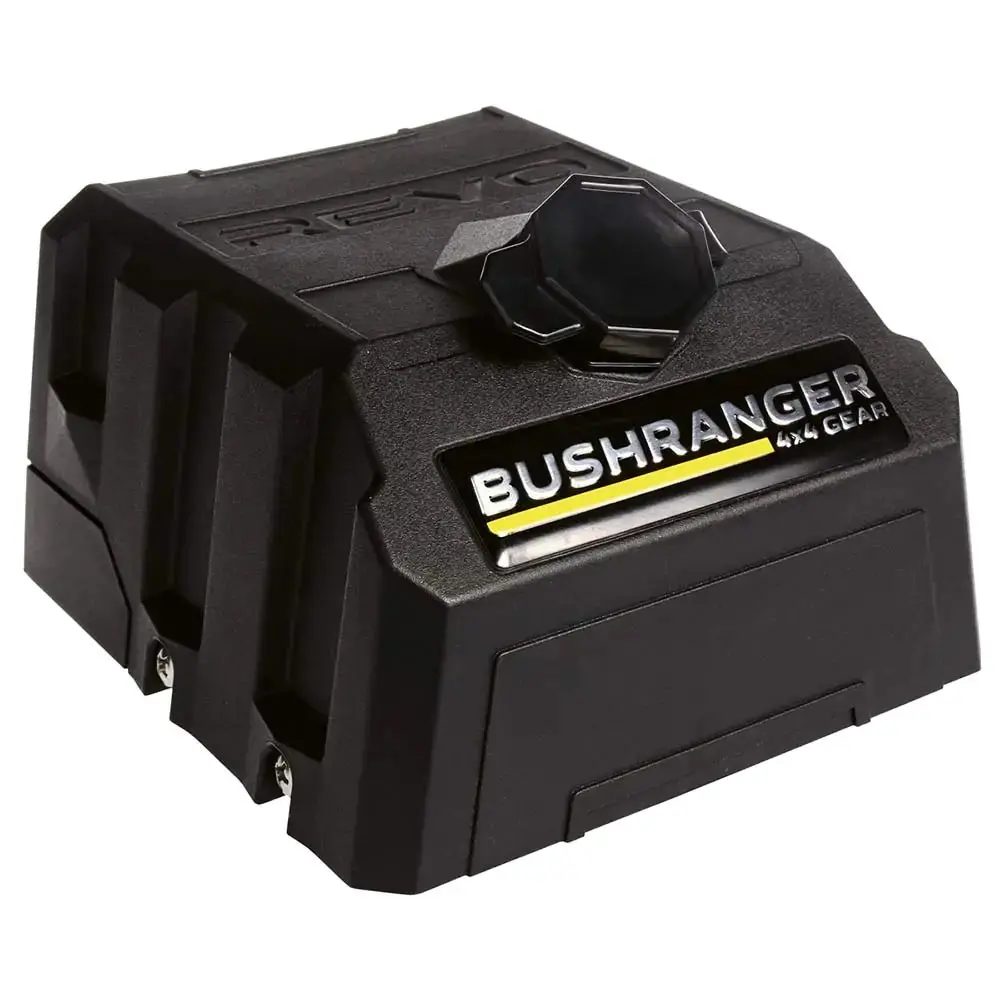

Versatile Control Box with multiple mounting orientations to suit every setup. Supplied with an additional mounting bracket for hassle free installation

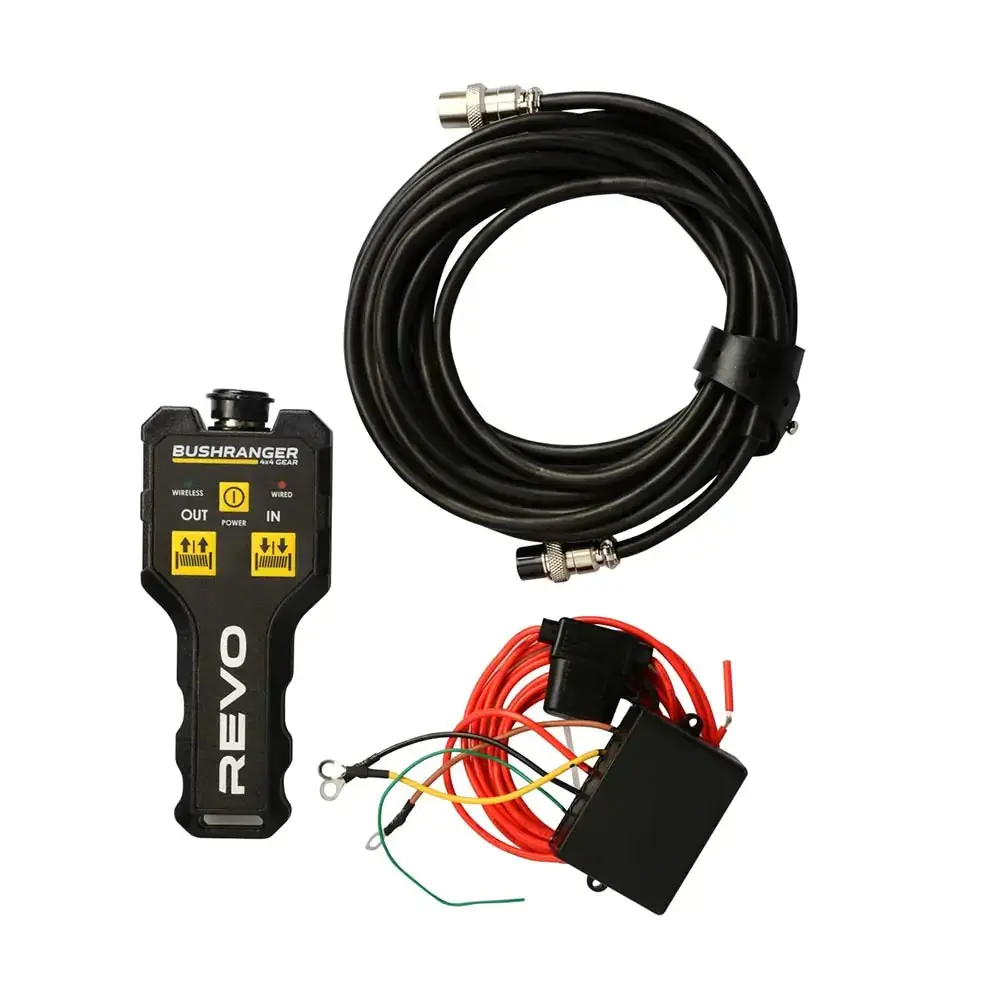

Wireless hand controller fully sealed, IP67 rated, with a 433MHz receiver mounted internally in the control box.

Zero drag braking system allowing for the winch to be powered out under no load without heat build-up, making unspooling a breeze

Specification

Dimensions: 602mm (L) x 165mm (W) x 216mm (H) (excludes control box)
Rated Line Pull (single): 12,000lbs (5,443kg)
Motor: Series wound, 12V, 6.2HP (4.6kw)
Remote Control: Two functions, hand controller (Wireless, 30m range) (Wired, 5m lead)
Electrical: Contactor IP67 500A
Gear Train: 4 stage gear driven
Gear Ratio: 171:1
Clutch (freespooling): Rotating Ring Gear
Brake: Gearbox Mounted, Proportional Friction Brake System
Drum Diameter/Length: 63.5mm x 244mm
Mounting: Bolt Pattern 254mm x 114mm
Rope: 11mm x 24m Synthetic Rope
Fairlead: Two position Aluminium Hawse Fairlead
Recommend Battery: 650CCA minimum
Battery Leads: 1850mm
Finish: Black Powder Coat
Mechanical Warranty: Limited Lifetime
Electrical Warranty: 7 years
Waterproof Rating: IP67
Certification: CE, IP67
Winch Weight: 35kg
