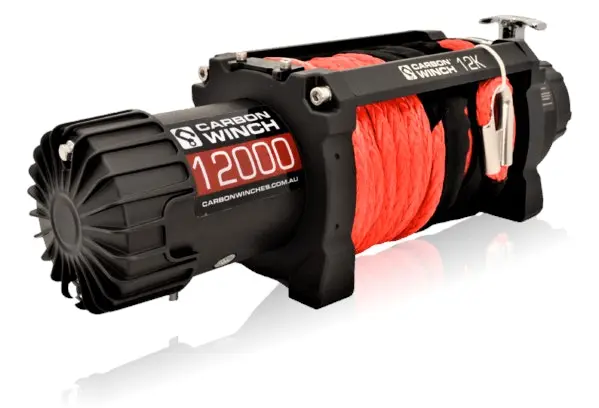

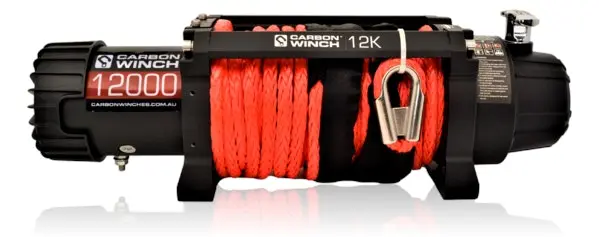

Carbon Offroad 24 VOLT Carbon 12K 12000lb Electric Winch With Synthetic Rope

This is a listing for a 24 Volt Carbon Winch. Please confirm you need 24 volt before placing your order.
Carbon Winches was designed and engineered by an Australian Offroad Business KPD Industries. A 4 year project began in 2012 to build a winch that would surpass all options that were available at the time. The Carbon Winch brand was launched in June 2016 and since then has developed a solid reputation for reliability and toughness being tested in some of the harshest environments in Australia and overseas including Iceland and the Middle East.
Many other products on the market simply didn’t cut it in the Australian Outback including some very popular world renowned brands so we built our own. Now is the time to show the world the quality and reliability we have developed.

 Designed by Australian offroad business for our harsh Aussie and international conditions
 Fully sealed to resist water, dirt and dust ingress into motor, drum and gearbox mechanisms.
 12000lb fast line pull 216:1 planetary gearset ratio
 6.2HP series wound electric motor
 5 position solenoid box mounting bracket
 Battery Isolator Switch
 Wireless remote control unit with lanyard- FULLY SEALED RECIEVER UNIT built into the control box.
 Rotating ring gear clutch for easy low drag freespool
 Electroplated planetary gearsets for long life
Breather kit pre-fitted to the electric motor
Multi Fit Fairlead no need to worry about which suits you bullbar! Simply install as standard fitment or flip over to offset the rope outlet by 20mm.
All internals fully zinc electroplated for corrosion protection.
High performance motor brushes with copper impregnated contacts and corrosion plated brush mount.
Bearing supported fully balanced armature for superior performance.
Hoist style brake unit mounted to the drum endplate provides superior holding power by braking through the geartrain with no heat generated on drum. No contact to drum no damage to synthetic rope.
4 position mounting for the control box bracket over the motor or over the drum on top for flat mounting plates or on front of winch for top mounting control box when winch is mounted vertically. Alternatively 700mm cables allow remote mounting of the control box separately to the winch.

NO FUSS WARRANTY –

5yr Water Ingress Warranty
5 year electrical warranty on motor / solenoid unit
Limited lifetime gear train warranty
Supported worldwide from Australia.
All winches are tested for full function and load prior to packing. We guarantee your winch will be 100% fully operational upon arrival.


Understanding the tech features of the winch will help you to decide if this winch is suitable for your requirements. From line speed to dimensions all specifications are important in helping you to understand what you are getting.

Carbon Winches 12K Winch is a 12000lb line pull winch and can meet the rugged demands of off-road and utility use in Australian conditions. It is designed to deliver the best value, reliability and service life for a winch user. The main features include:
? 6.2 HP Series Wound motor ? 216:1 ratio 3 stage planetary gearbox ? Automatic brake in the motor housing drum plate provided load holding through the geartrain not directly on the drum ? (No heat build up on drum) ? Rotating ring gear freespool clutch assembly which minimises freespool drag and completely eliminates clutch engagement issues. ? Power in and power out via a plug in hand remote or a wireless remote controller. Remote controller has auto off and failsafe operation features built in. The receiver is fully sealed and impervious to water. ? 500amp sealed solenoid unit and wired handle remote control and wireless remote control unit
SPECIFICATIONS Part number: CW-12K_24V Rated line pull: 12000 lbs, (5450 kg) single-line Motor: 24V DC  series wound motor Remote Control: Remote Switch, 12? (3.7m) lead. Wireless Remote Control: Included Geartrain: 3-Stage Planetary. Gear Ratio: 216:1 Clutch (freespooling): Rotating Ring Gear Brake: Full load automatic brake installed in the motor housing end plate. No heat on drum. Drum Diameter/Length: 2.5??/8.8?? (64mm/224mm) Synthetic Rope: 24m x 10mm diameter Fairlead: CNC billet alloy black anodised with laser etched logo Recommended Battery: 650 CCA minimum for winching Mounting Bolt Pattern: 10?? x 4.5?? ( 254mm x 114.3 ) Winch Dimensions ( L x W x H ): 21.7” x 6.3” x 6.8” (552 x 160 x 172mm ) Packing Dimensions( L x W x H ): 24.2x 14.5′ x 9.8′ ( 615 x 370 x 250mm ) Winch weight with synthetic rope attached: 19.5kg
? Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 23.45kg
PLEASE NOTE: The product video shows a snatch block pulley. This product is an optional extra and is NOT included in the winch package.


Carbon Winch 12k ? Package contents included in purchase price

Description

Quantity

Comment

Carbon Winch CW-12K_24V

1

24x10mm Synthetic Dyneema Rope

Control box 500amp

1

1pc 500A solenoid and battery cables + wireless remote
1 x long black battery cable

Hand remote control & Wireless remote control



Plug in and wireless operation

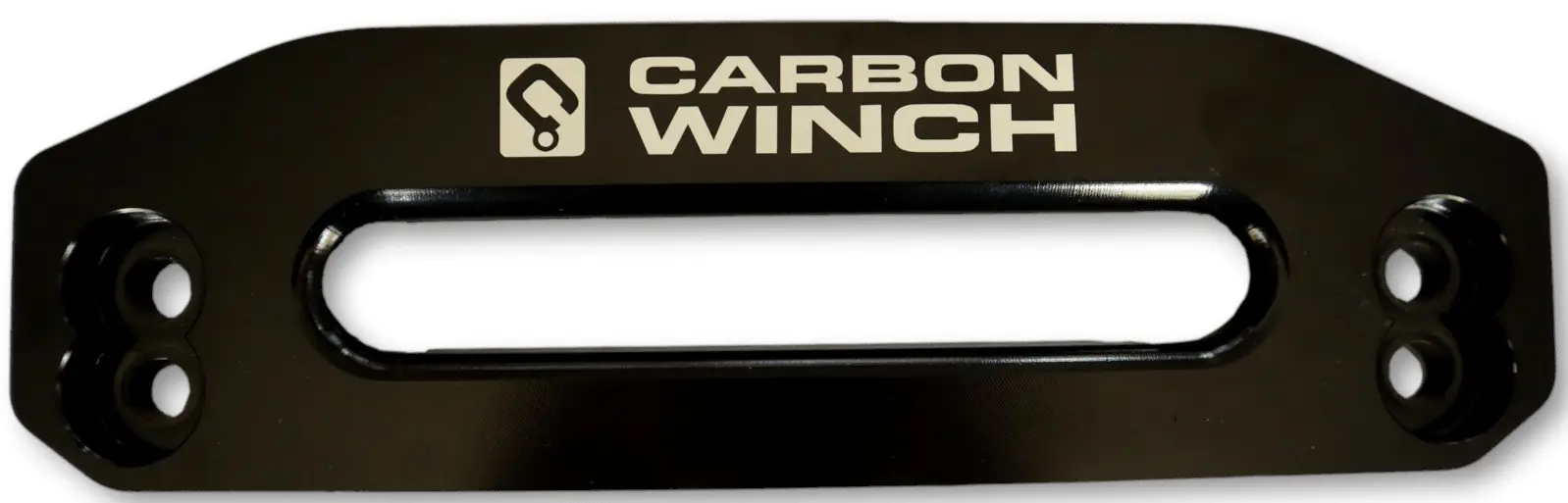

CNC Billet Black Plate Hawse Fairlead



Laser Etched Carbon Winches reversible Fairlead

Hardware bag

6sets

4 pieces for mounting winch and 2 pieces for mounting fairlead on separate fairlead mount. 2 x extra long winch mounting bolts for mounting fairlead through to winch mounts.

Owners Manual

1pc

 Included

Carbon Winch Hook Kit

1pc

 Included

Red Hook strap

1pc

 Included

Electrical Cut out isolator switch Kit

1pc

Included
