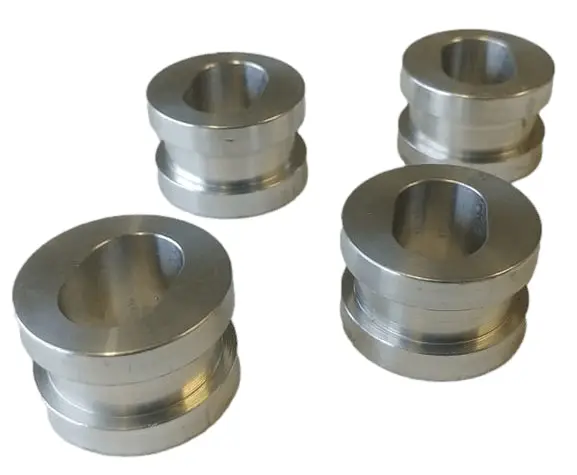

Carbon Offroad 25mm Winch Mount Spacer Kit

This winch mounting spacer kit was requested by owners of winch bull bars that were specifically made to fit the narrow style Warn High Mount Winches. A lot of people simply want to run a low mount style winch like the Carbon Winch CW-12k winch. The main issue with these high mount winch bullbars is the centre cradle usually has wings that sweep back to the main part of the bar, meaning the wider low mount winch will hit on the electric motor side before it’s able to reach the mounting cradle surface. and
and
Our 25mm thick spacers will provide sufficient clearance rearward to clear the motor on the bullbars. We slotted the holes to allow for tolerances on the bar and allow you to position the spacer to your desired mounting position. and
and
There are no bolts supplied with this kit, due to multiple applications and mounting situations it’s hard to cater for every application. You can source Grade 8.8 high tensile mounting bolts in your required length from any hardware or bolt supplier. and
Specs: and
6061 T6 Aluminium – Australian Made
25mm thick
38mm wide
4 x Spacers in kit. and
