Carbon Offroad Carbon 3.0k 3000lb Utility Trailer ATV Quad Bike Electric Winch

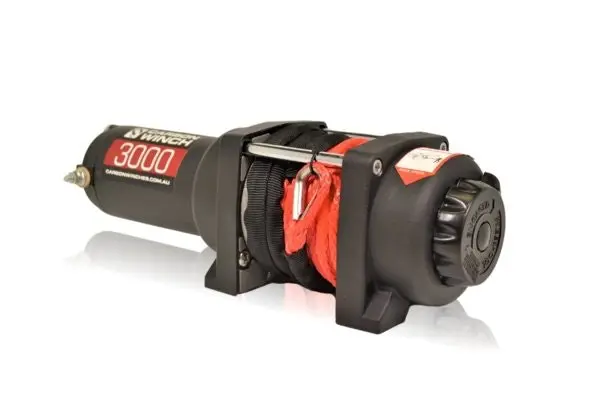

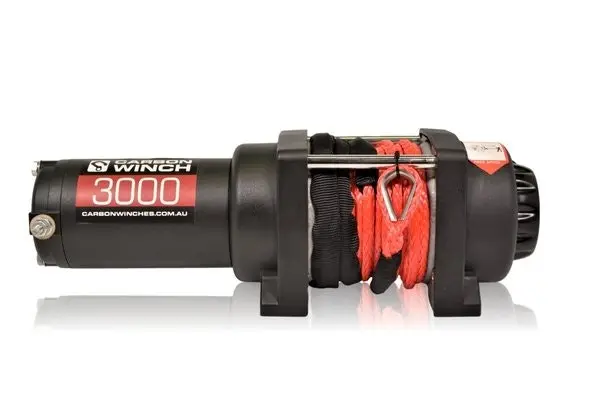

The Carbon CW-3U 3000lb Light-Duty Trailer and Utility Winch

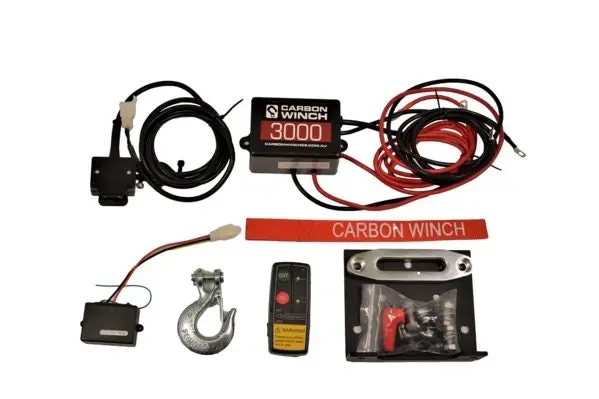

The Carbon CW-3U 3.0K 3000lb winch may be a small winch, but it’s one big value when you conside the reliability and the overall quality. Built to handle lighter loads ( to 3,000lb). This winch is overflowing with upgraded features, including a hand remote and wireless remote control to control power in/power-out functions and tie rods for added stability.


SPECIFICATION / PART NUMBERS  CW-3U 3000lb


Part number: CW-3U
Rated line pull:  3000lbs, (1360kg) single-line
Motor: 12V DC 1.5HP Permanent Magnet motor
Remote Control: Remote Switch, 12� (3.7m) lead.
Wireless Remote Control: Included
Geartrain: Single Stage Planetary.
Gear Ratio: 153:1
Clutch (freespooling): Split Ring Gear
Brake: Self-locking gear train ( Rated Load Holding
Drum Diameter/Length: 1.26��/2.87�� (32mm/73mm)
Synthetic  Rope: 43�, 3/16�� diameter ( 13m, 4.8 diameter)
Fairlead: Roller
Mounting Bolt Pattern: 3.0�� x 4.87�� ( 76mm x 124mm )
Winch Dimensions ( L x W x H ): 12.2” x 5.0” x 5.0” (310x 127 x 127mm )
Packing Dimensions( L x W x H ): 15.7��x 7.9” x 8.7” ( 400 x 200 x 220mm )
Shipping Weight: 10kg ( 22lbs)
Warranty : 1 year



12V DC PERFORMANCE SPECS (first layer of drum)

Line Pull Lbs.(Kgs.)

Line Speed FT./min(M/min.)

Motor Current

Pull by layer layer/Lbs(Kgs.)

0

20.4(6.2)

10Amps

1/3000(1360)

1000(453)

14.2(4.3)

65Amps

3/2725(1235)

2000(907)

10.9(3.3)

96Amps

3/2480(1125)

3000(1360)

7.7(2.4)
