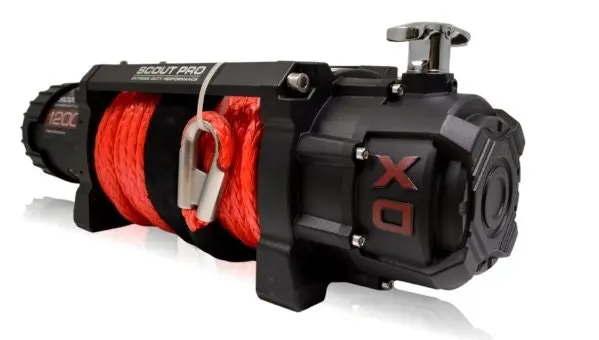

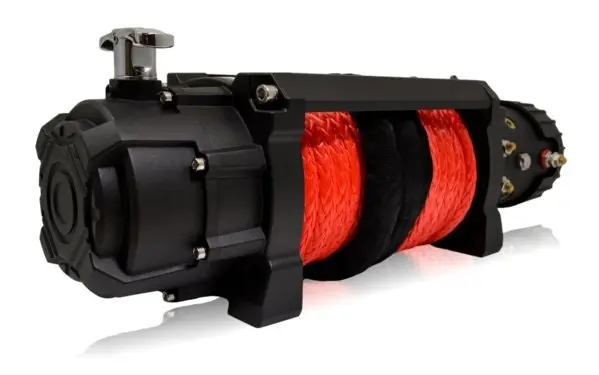

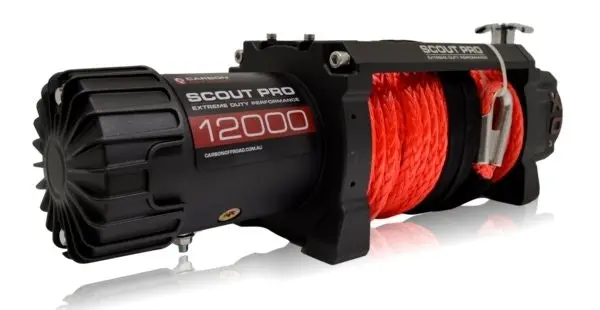

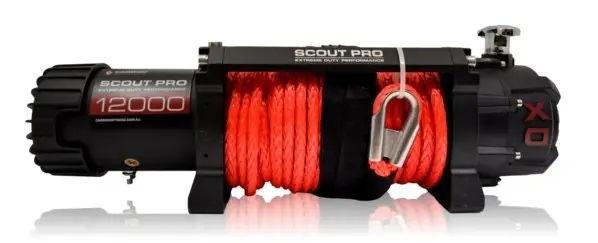

Carbon Offroad Carbon Scout Pro 12.0 Extreme Duty 12000lb Fast Electric Winch

The Carbon Offroad Scout Pro Extreme Duty Performance Series winches are built with the frequent use winching user in mind who is tackling harsh offroad conditions on a regular basis, or the owner of vehicles which are extremely heavy, kitted out or towing in offroad conditions.
With larger modulus gearsets, increased motor horsepower and standard inclusions from our premium accessory range including the Mega-Pro Winch Rope Thimble and Mega-Pro Premium Fairlead, you are getting a best of the best package straight out of the box.

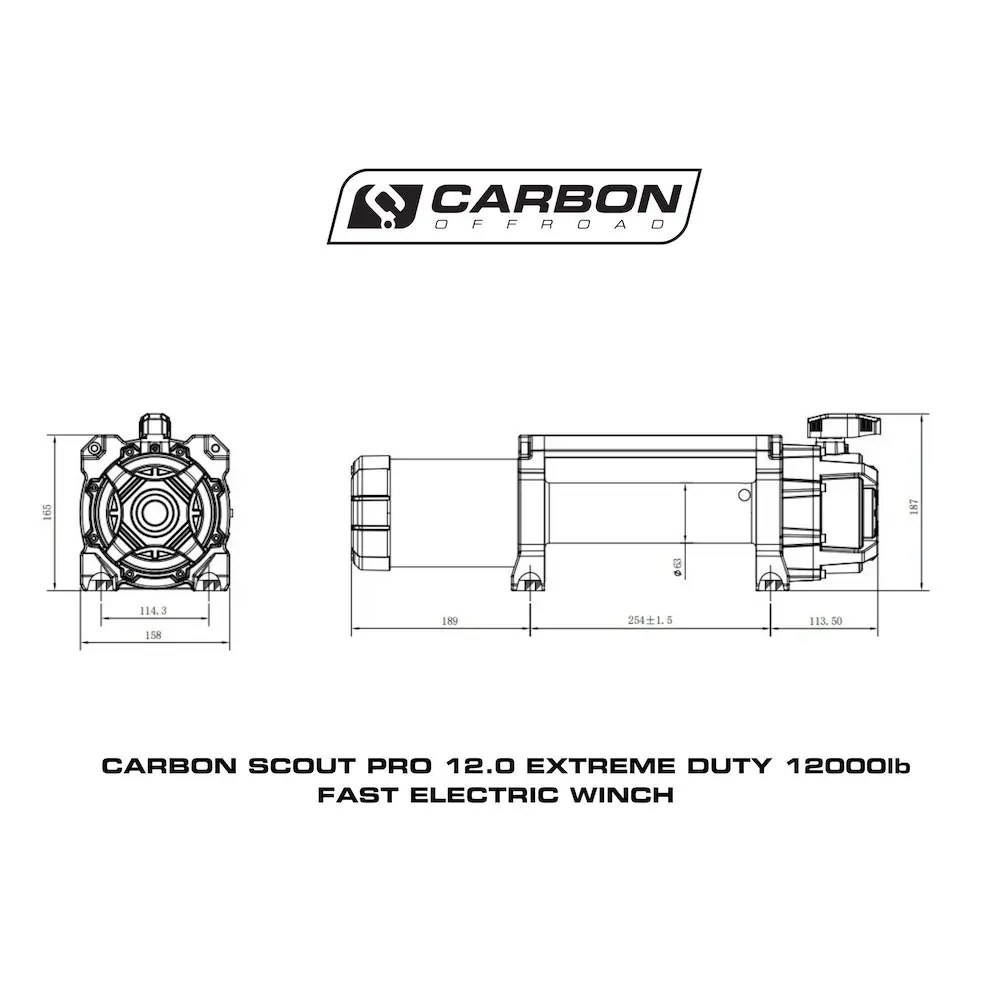

The Scout Pro series winches share the same 2021 Version 2 Winch Chassis as our tried and tested 12K winch. This allows fitment into most larger 4×4 utes and 4×4 Wagons. Due to the longer 7.0HP Motor, you should consult the technical drawing to determine clearance and fitment length on your winch mount. Most larger vehicles such as RAM, F-Truck and Silverado are generally wide enough to not be a problem, Fitment to any dual cab, 70 series, 200 series or any other similar sized 4wd wagon should be confirmed prior to purchase. The responsibility of the fitment is that of the end-user or installer.
The 12000lb winch comes with 12mm high density pre stretched premium UHMWPE winch rope rated at a whopping 9000kg minimum breaking strain.

Carbon Winch 2021 V2 winch chassis
7.0HP Motor
180:1 heavy duty performance gearbox
12mm Synthetic Rope with HD braced rope thimble

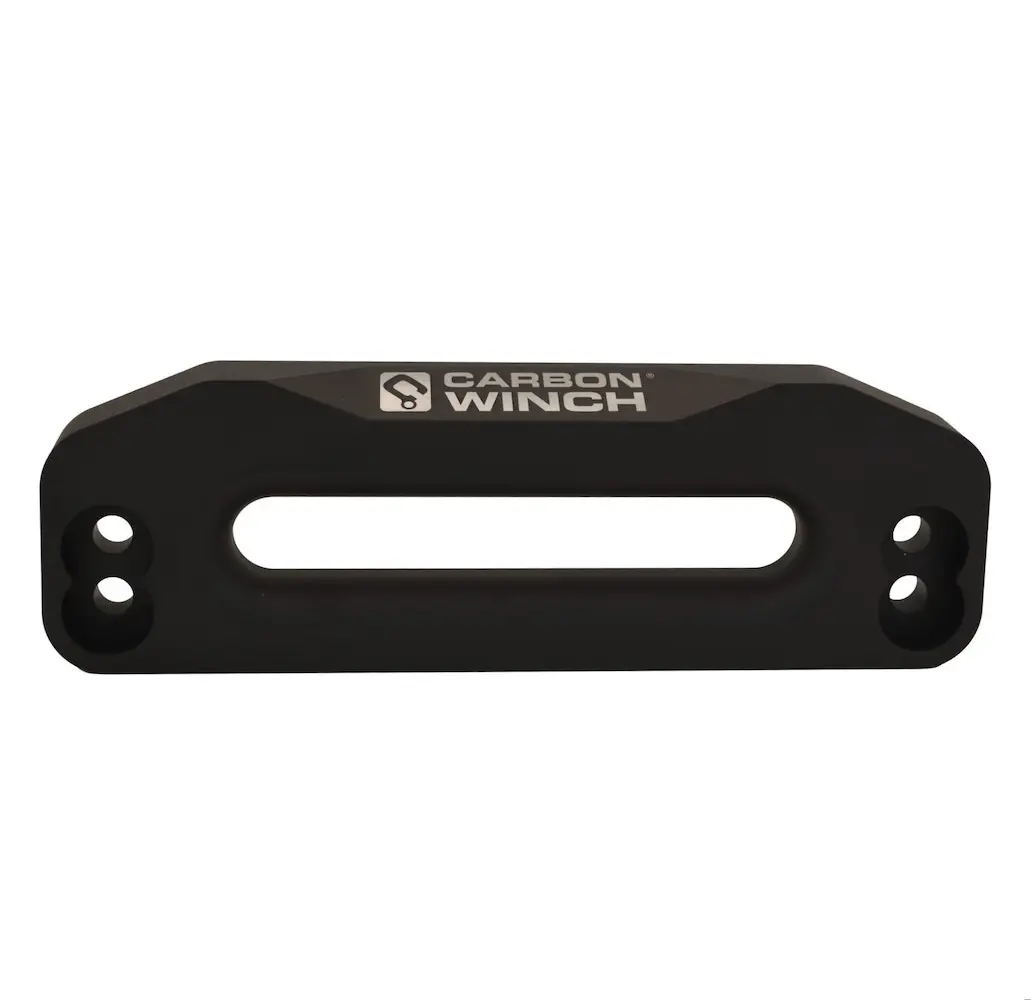

Carbon Offroad MEGAPRO Premium CNC billet type 3 hard anodised multi position fairlead
Carbon Offroad MEGAPRO Winch Hook
High performance heavy duty upgraded solenoid unit

CW-XD12




12V DC performance specs (first layer of drum)




Line Pull
Line Speed
Motor
Pull by layer

Lbs.(Kgs.)
FT./min(M/min.)
Current
layer/Lbs(Kgs.)

0
43.3 (13.2)
70 amps
1/12,000 (5450)

2000 (910)
14.8 (4.5)
115 amps
2/9800 (4450)

4000 (1810)
12.8 (3.9)
165 amps
3/8300 (3770)

6000 (2720)
9.2 (2.8)
215 amps
4/7200 (3270

10000 (4540)
7.5(2.3)
310 amps


12000 (5450)
5.6(1.7)
370 amps
