Fieryred Electric Winch 12V 5500LBS Synthetic Rope Wireless Remotes ATV UTV Boat

DESCRIPTION You never know when your ATV/UTV can get stuck if you are exploring the back country or traversing through a muddy river.To an off-road driver, this incredible Fieryred electric winch can be a genuine Get Out of Jail Free card.

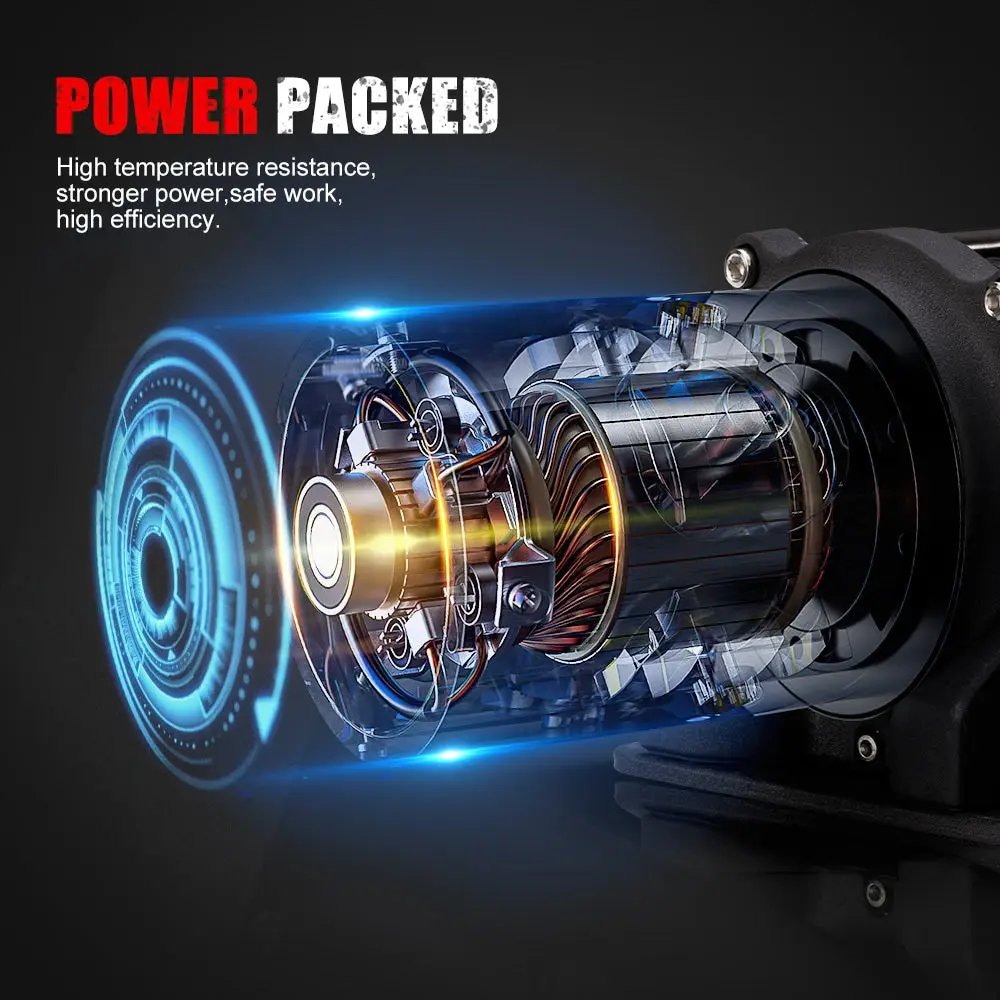

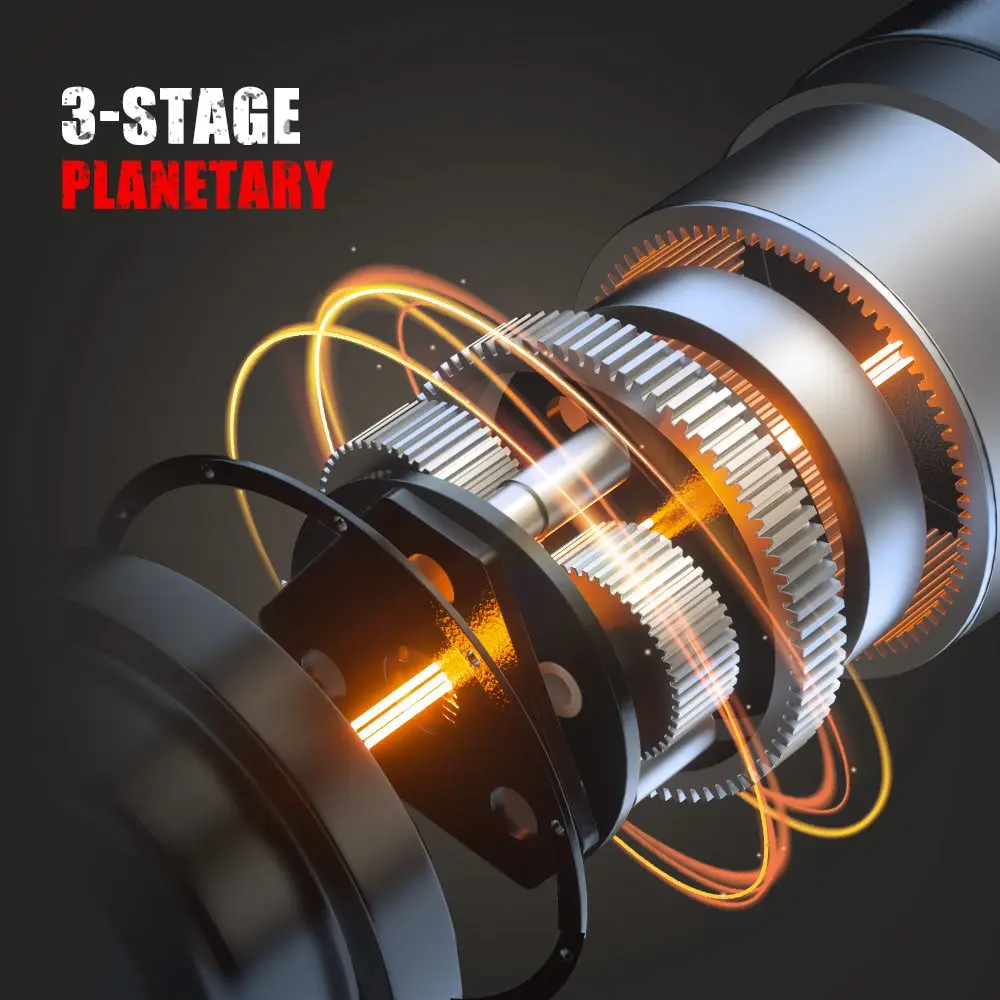

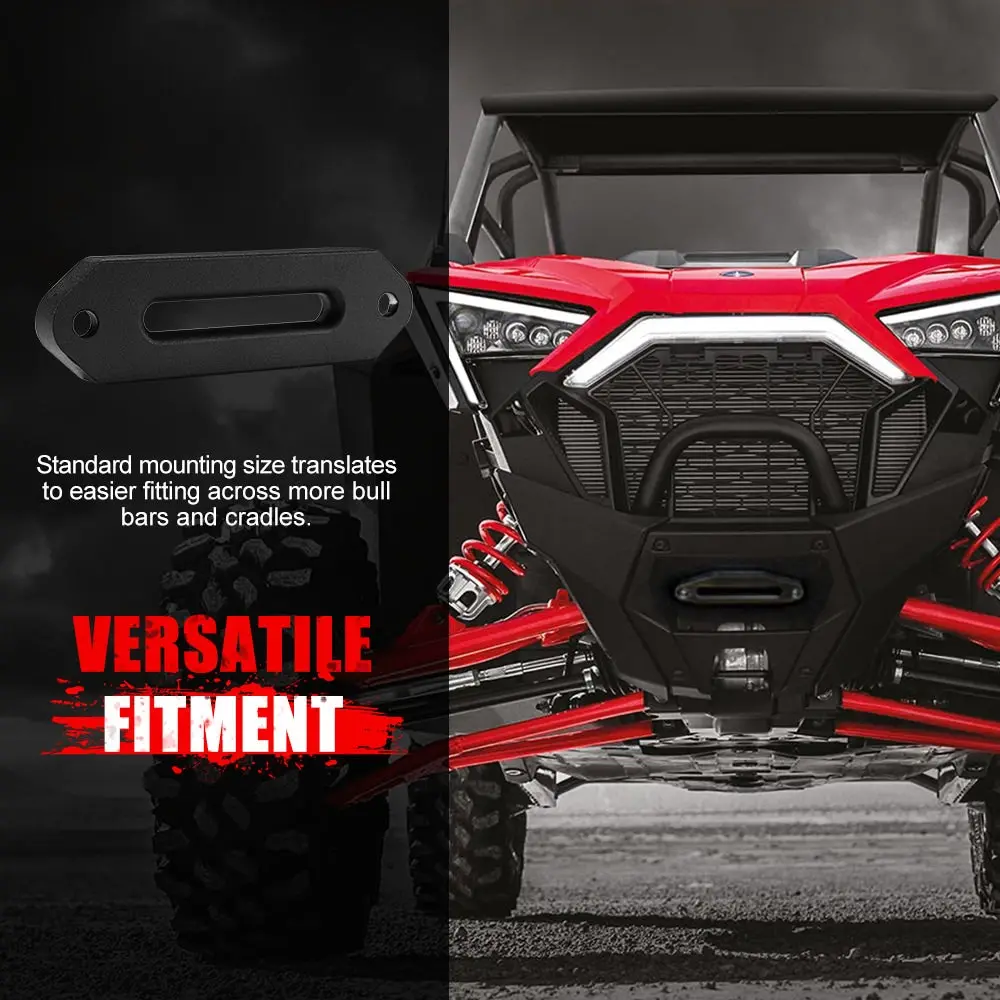

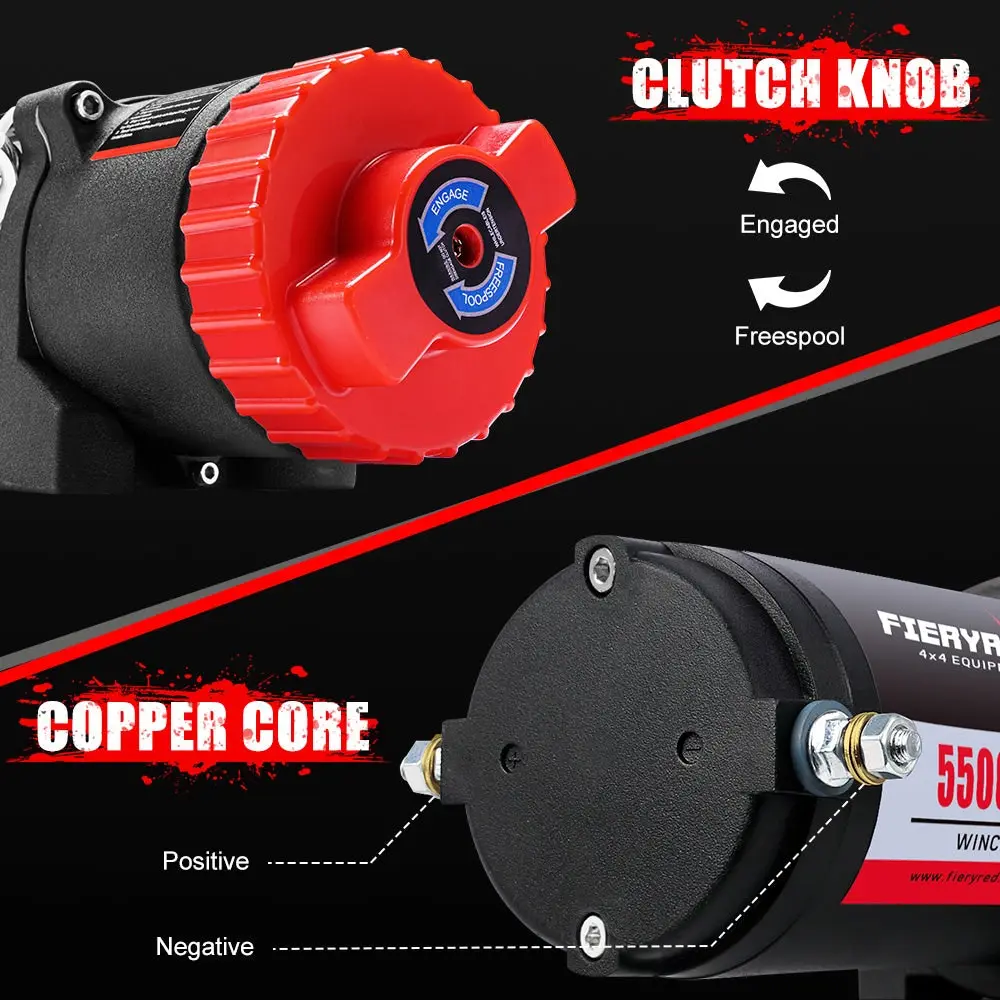

This kit contains everything you need to rescue your vehicle from mud or broken ground, including synthetic rope, powder coated aluminum hawse fairlead & steel mounting plate and galvanized steel hook which are impact & corrosion resistant. This ATV winch features 3-stage planetary gear train with 166:1 ratio, and its 2.2hp output permanent magnet motor delivers faster and quieter pulling power than ever. With up to 5,500lbs pulling capacity, this UTV winch features electric pulling and spooling, and also comes with the clutch for manual spooling. As an added bonus, a red spare clutch and a gray one are supplied to make your ATV/UTV more stylish. And mounting brackets make it convenient to install the switch onto the tube of ATV/UTV for your peace of mind. FEATURES Superior Capacity: Featuring reversible electric winching (pulling and spooling), this electric winch with synthetic rope has up to 5,500lbs pulling capacity. Easy Free Spooling: With dynamic braking system, the clutch allows you to manually spool the rope, and the red or gray spare can make your ATV/UTV sleeker. Waterproof Protection: This Fieryred electric winch is IP67 rated for protection from immersion up to 1m underwater for at least 30 min. Durable Construction: Powder coated aluminum hawse fairlead & steel mounting plate and galvanized steel hook resist mechanical damage and corrosion. Hassle-Free Installation: Plug & play with circular connector to connect switch to control box, this UTV winch contains all you need for simple installation. Added Bonus: This Fieryred electric winch comes with mounting brackets for convenient installation of the switch onto the tube of ATV or UTV. Premium Motor: Featuring 3-stage planetary gear train with 166:1 ratio, 2.2hp output permanent magnet motor delivers faster & quieter pulling power than ever. Optimal Design: The winch drum is engineered with large diameter to reduce stress on the rope for minimized wear. Wired & Wireless Remote Control: This ATV winch comes with 8.5ft (2.6m) wired remote control & 98.4ft (30m) wireless remote control for your convenience. Safer Operation: With breaking strength of 9,500lbs (4,309kg), the synthetic
rope is safer to operate as it does not store energy under stress like the steel rope does. SPECIFICATIONS

Capacity:
5,500lbs (2,495kg)

Voltage:
12V DC

Motor Type:
Permanent Magnet

Motor:
Input :3.2kW/4.3hp ; Output: 1.6kW/2.2hp

Gear Ratio:
166:1

Max Amp Draw / Line Pull:
280A / 5,500lbs

Max Line Pull / Line Speed:
5,500lbs / 3.6 ft per min (1.0m per min)

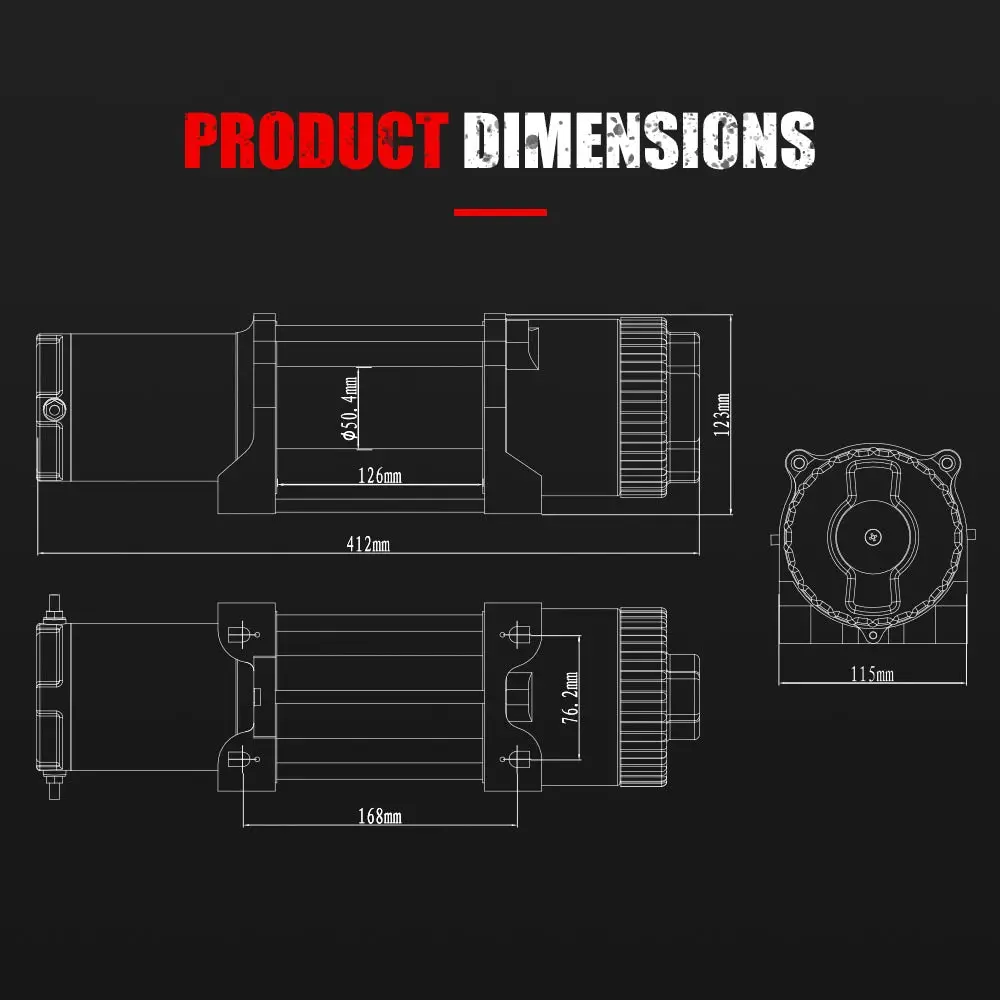

Drum Size:
2’’ x 5’’ (Φ50.4mm x 126mm)

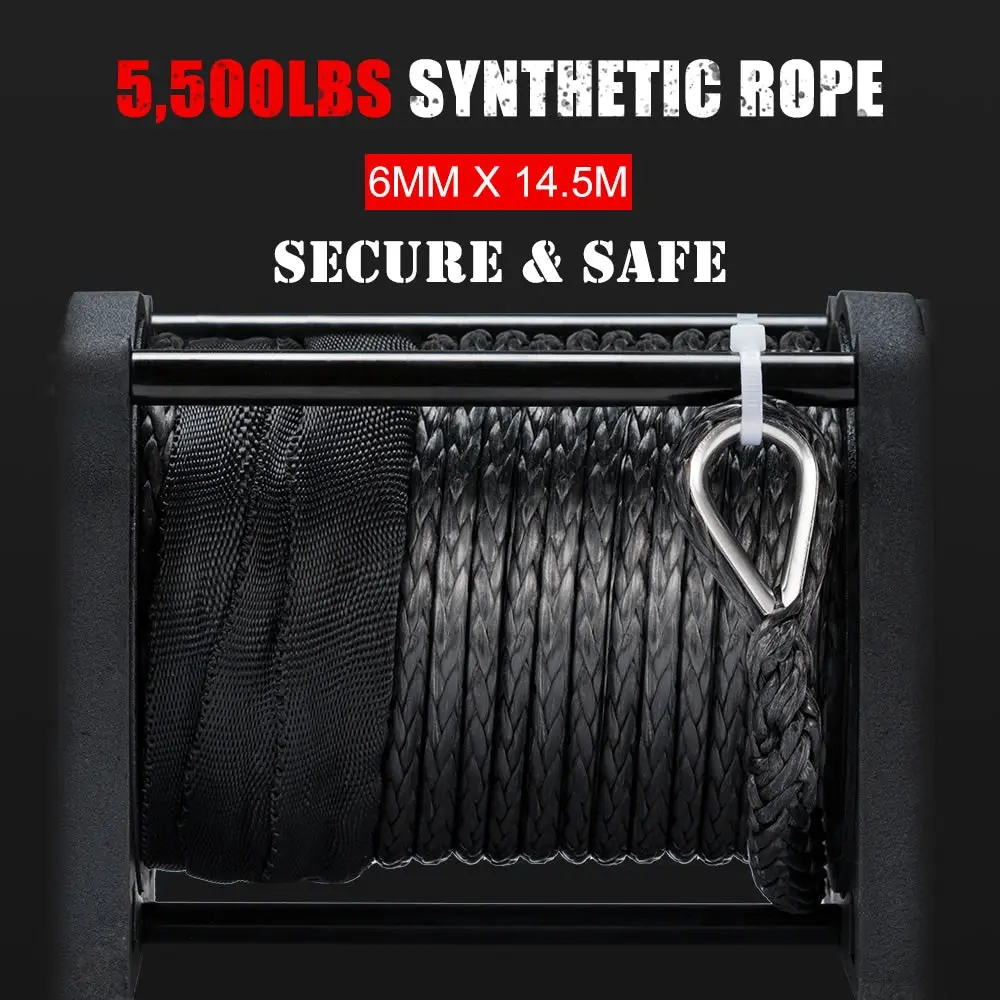

Synthetic Rope(Diameter):
0.24″ (6mm)

Synthetic Rope(Length):
47.57 ft (14.5m)

Cable from Control Box to Battery Lugs (Length):
2 ft (0.6m)

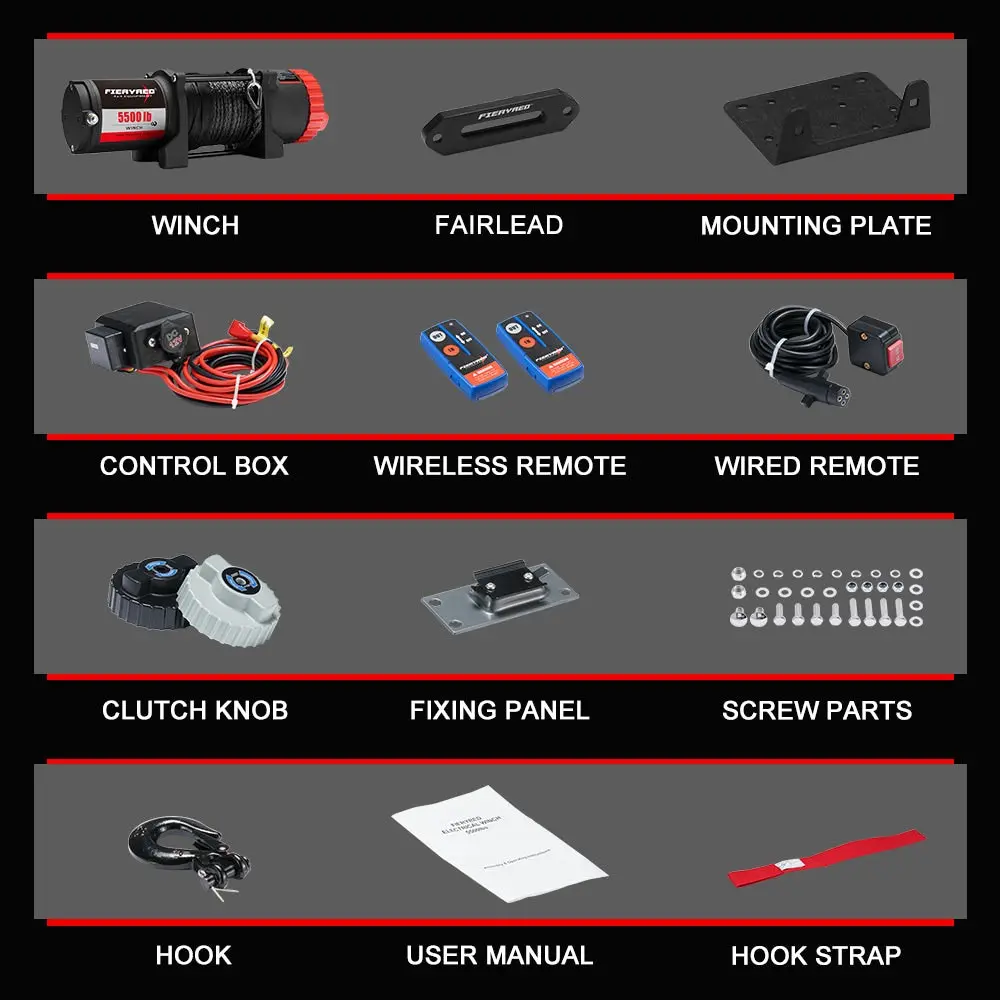

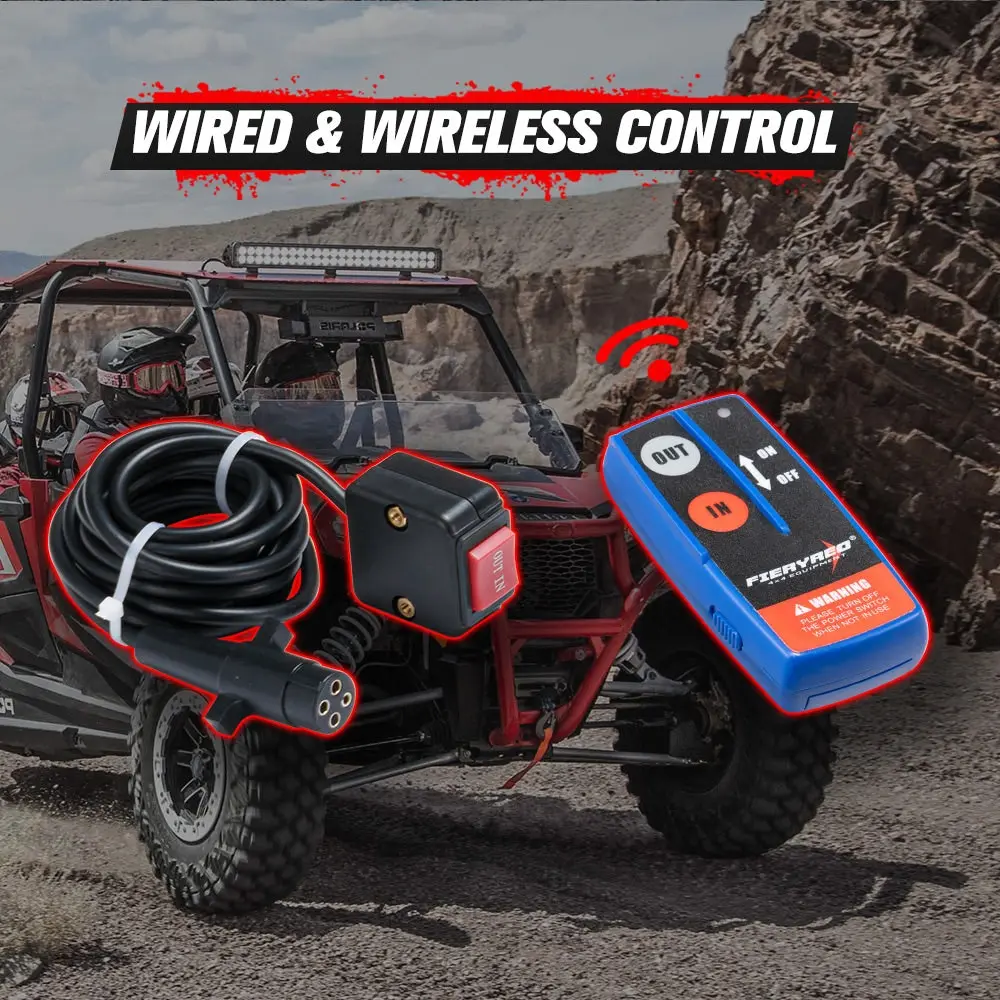

PACKAGE INCLUDES 1 x 5500LBS Electric Winch 1 x Aluminum Hawse Fairlead 1 x Mounting plate 1 x Hook ； 1 x Hook Strap 1 x Control Box ； 1 x Fixing Panel 1 x Wireless Remote ； 1 x Wired Remote 3 x Clutch Knob（RED,BLACK,GREY） Set of Screw parts ； 1x User Manual WARRANTY 2 Years Warranty
